Fiber Products

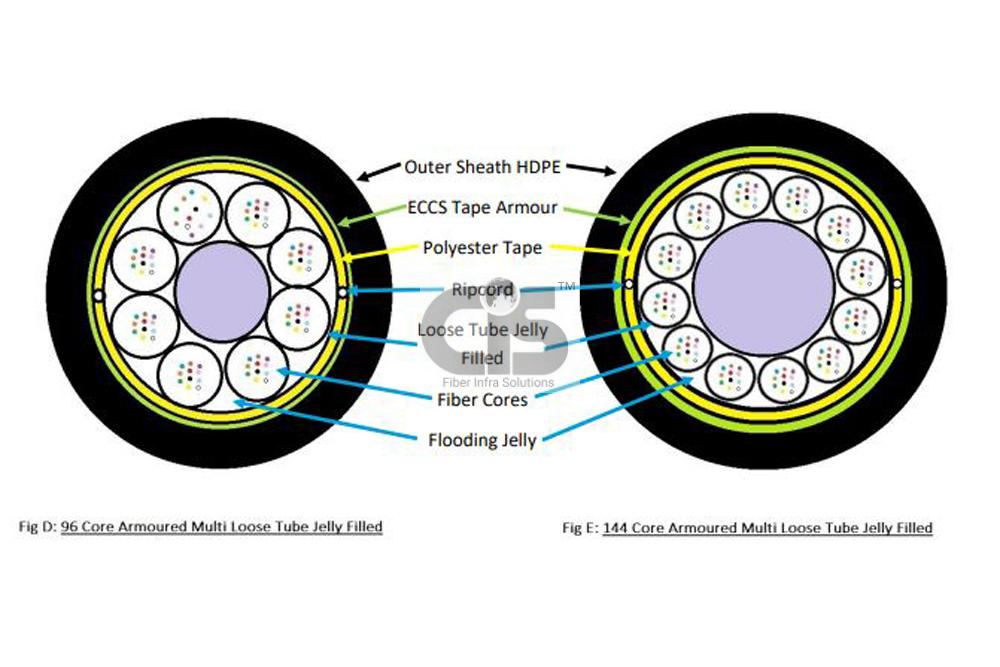

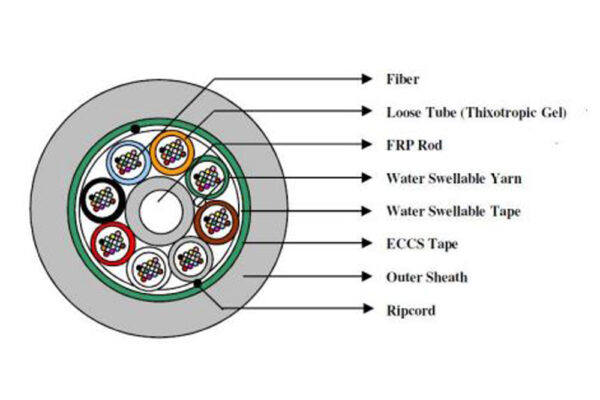

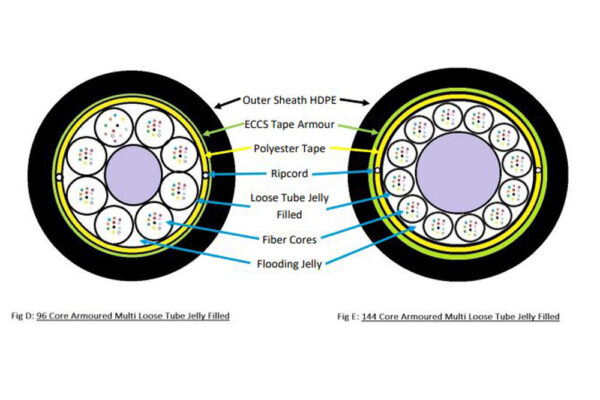

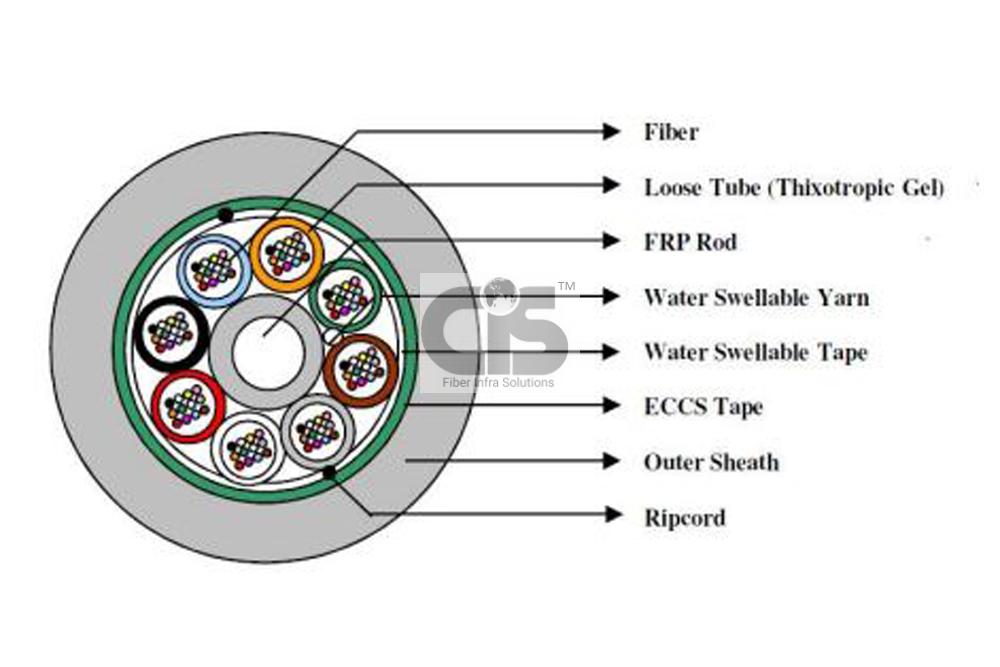

96F, Single Mode, Armoured, Multitube
96 Core Single mode 9/125, Loose Tube jelly filled Cables, Multitube, Single Sheath – Outdoor Armored Cable – ECCS-Corrugated, complying to 9/125 ITU G.652,
Features :
- Attenuation at : 1310 nm ≤ 0.36 dB/km, at 1550 nm ≤ 0.20 dB/km, at 1625 nm ≤ 0.22 dB/km.
- Zero Dispersion Wavelength : 1300 - 1324 nm.
- Cable Cut-off Wavelength : ≤ 1260 nm.
- Mode Field Diameter at: 1310 nm 9.2 ± 0.4 µm.
- Cladding Non-circularity : ≤ 1 %
